3.81mm Pitch PCB Board Connector Male Female Quick Tab Tin Plated Terminal Connectors

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

3.81mm Pitch PCB Board Connector Male Female Quick Tab Tin Plated Terminal Connectors

Brand Name : JVT

Model Number : JVT3804TB-NIS

Certification : ISO9001:2008/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Pitch : 3.81mm

plating : tin plated

Rating Current : 3A AC/DC

Type of Row : #28-32

Contact Now

JVT new product 3.81mm pitch PCB Terminal connectors male female quick tab terminal tin plated

Specification Standardized:

Applicable wire	#28-32
Rating Voltage	200V AC/DC
Rating Current	3A AC/DC
Withstand voltage	1000V AC/minute
Operating temperature	-40°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

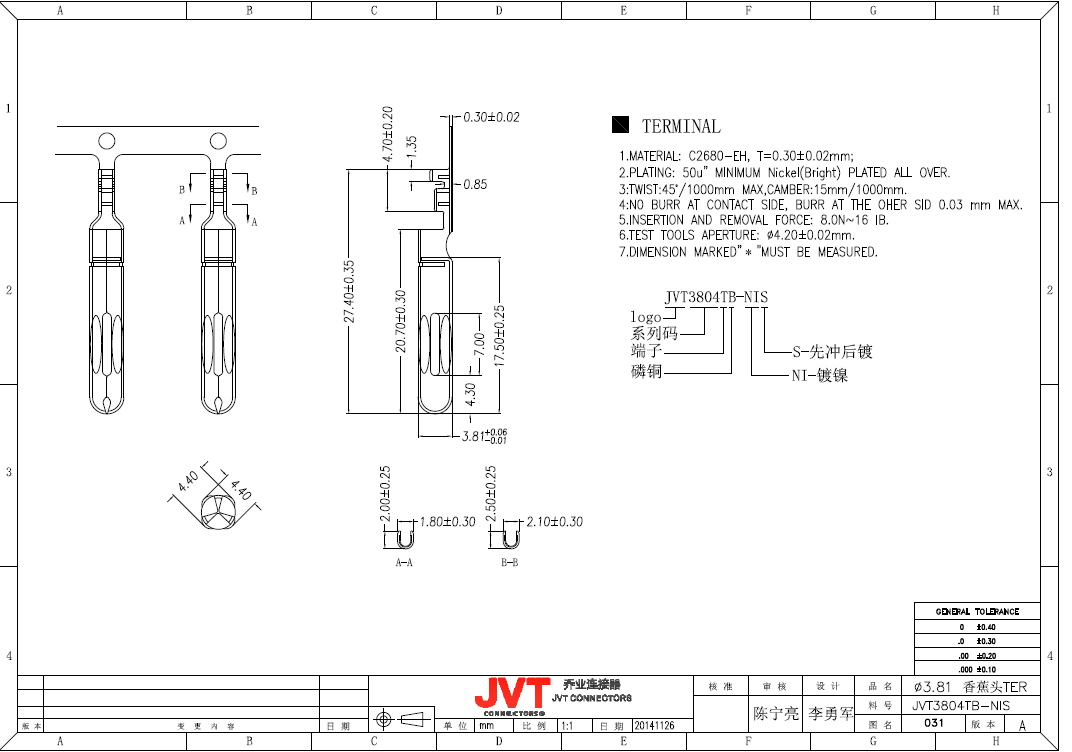

Datasheet:

3.81mm Pitch PCB Board Connector Male Female Quick Tab Tin Plated Terminal Connectors

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service

Country of Origin

Experienced Staff

Guarantee/Warranty

International Approvals

Price

Prompt Delivery

Quality Approvals

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
